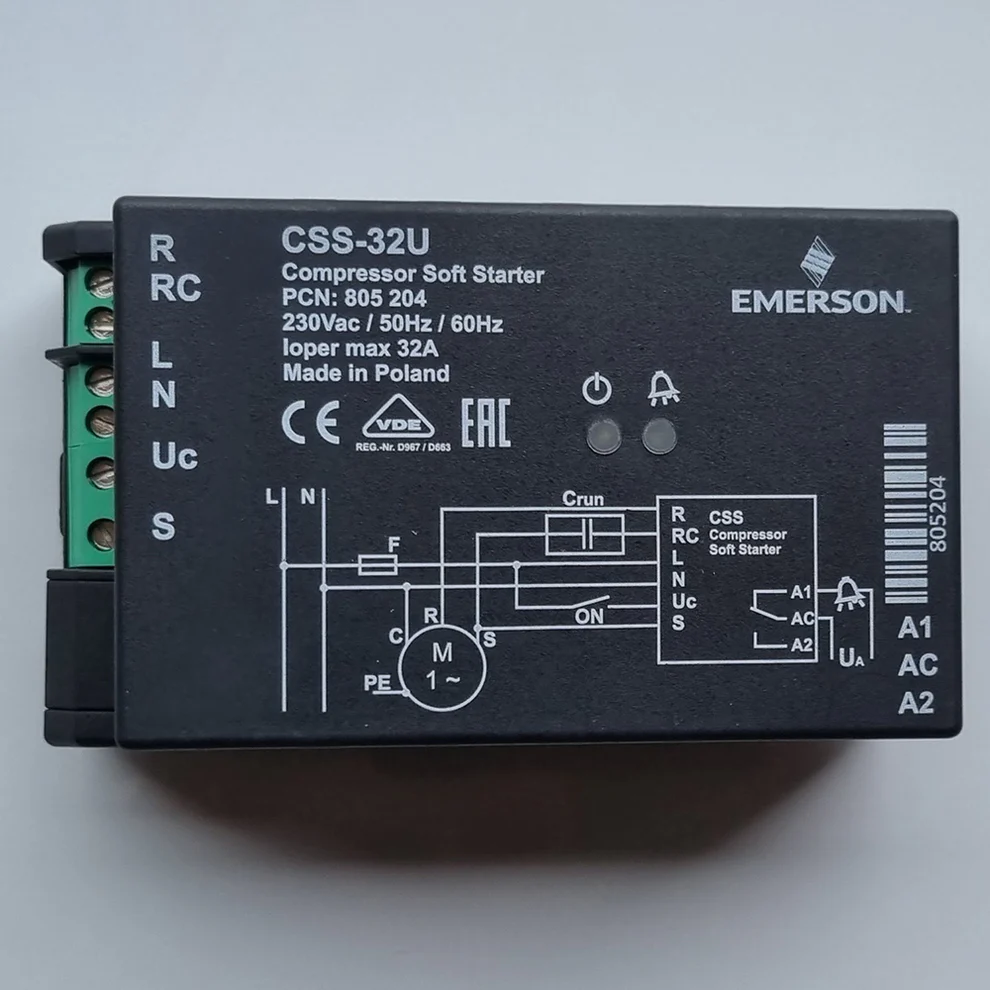

Soft Starter – Single Phase | Zodiac Compatible [CSS-32U]

The first VDE certified Compressor Soft Starter for safety of your household.

This is a universal soft starter to suit most single phase air conditioning and pool heater applications. The soft starter allows the compressor to start up slowly and gradually by increasing voltages to the compressor. This allows for a smooth acceleration of power instead of a sudden and violent burst of power that could potentially cause damage to the compressor and the unit as a whole.

Can be easily used to replace hyper engineering SS6-C soft starter.

Features
• For motors with maximum operating current up to 25A / 32A
• Limitation of starting current to less than 45A; PCN 805209 less than 30A
• Self adjusting for use in 50 Hz or 60 Hz supply
• Self adjusting to motor current – no manual adjustment or calibration necessary
• Alarm relay output
• Start capacitor for improved motor acceleration is switched off after start
• Low voltage shutdown
• Locked rotor recognition and shutdown
• Delay function to limit number of motor starts per hour
• Thyristor protected contactor for long life
• No extra motor contactor needed
• Self diagnostics
• Mounting clip for easy installation allows DIN rail mounting in two directions
• Easy wiring by cage type screw terminals (flexible cross section 4mm ; CSS-32W flexible cross section 6mm)
