SKU: P490

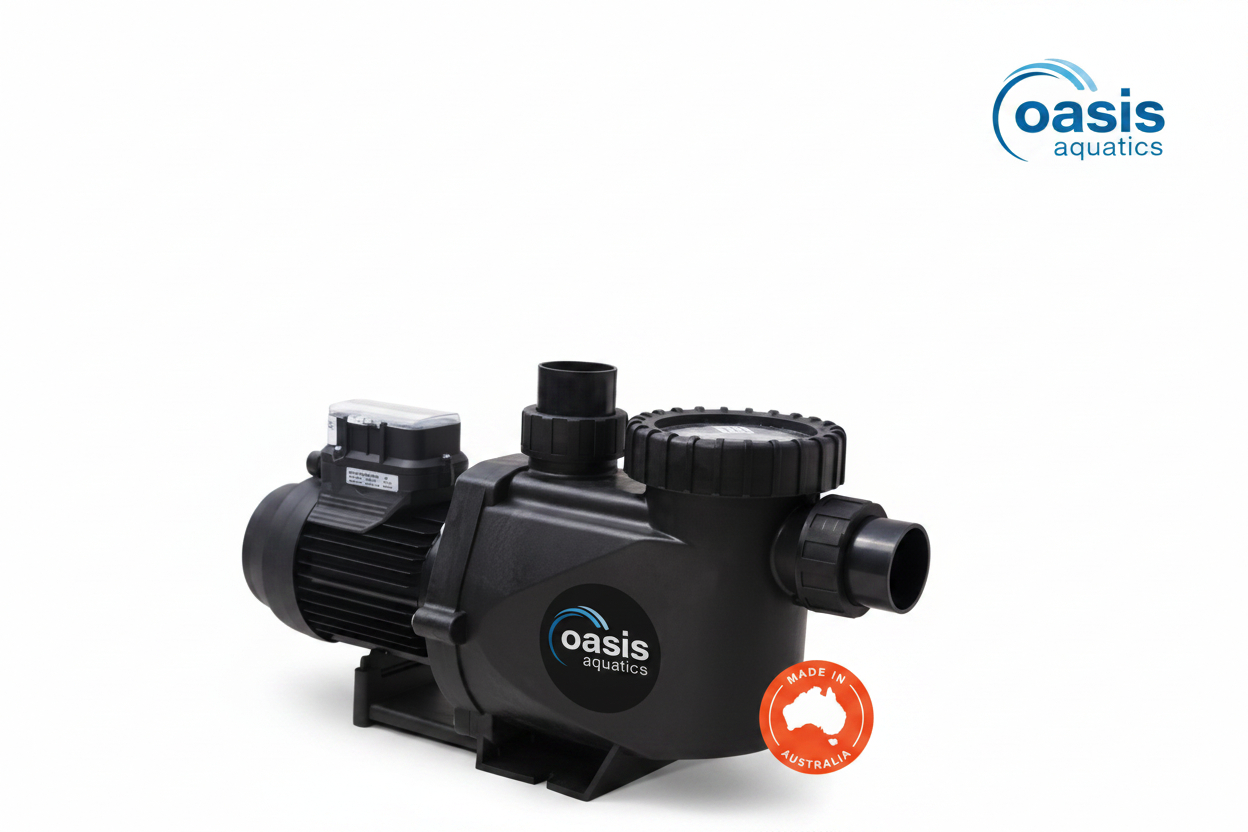

OASIS P490 SERIES High Performance Pump
The design of the diffuser and balance impeller systems provide low noise operation, while still providing powerfulwater flow and filtration under maximum pressure.
Contained in a high quality engineering grade thermoplastic material that is corrosion resistant, the units feature a stainless steel pump shaft, a lapped true carbon face, ceramic seal and stainless steel assembly nuts and bolts.
These units have a simple and strong construction designed specifically for Australian conditions.
Key Features:
- Powerful and reliable motor rated for continuous operation
- Barrel unions are suitable for both 40mm and 50mm PVC pipe connections.
- Extremely quiet
- Easy removable clear inspection lid for quick routine maintenance and cleaning of strainer basket
- Australian Made
- 3 year limited warranty against defects in workmanship and materials excluding obvious neglect, misuse, improper installation or improper maintenance from date of purchase. 3 years on pump body and seal plate. 2 years on motor. 12 month on Mechanical Seal.
Technical Specifications:
The P Series pumps are engineered for high-performance operation, delivering strong flow rates and reliable power across a range of demanding pool applications.
- The P270 model features a 1.0 horsepower motor, delivering a flow rate of 270 litres per minute at 8-metre head. It operates on a 240V single-phase supply, with a full load current of 4.1 amps and a power input of 950 watts. Maximum noise level is 60 dB(A) at 1 metre, ensuring efficient yet relatively quiet operation.
- The P330 offers increased output with a 1.25 horsepower motor, producing a flow rate of 330 LPM at 8-metre head. It runs on 240V single-phase power, drawing 4.97 amps at full load, with a power input of 1150 watts. Noise levels are rated at 62 dB(A).
- The P380 is equipped with a 1.5 horsepower motor, delivering a flow rate of 380 LPM at 8-metre head. It operates on 240V single-phase, with a full load current of 6.4 amps and a power input of 1500 watts, with a maximum noise level of 63 dB(A).
- The P490 is the highest-capacity model in the range, featuring a 2.0 horsepower motor and achieving a flow rate of 490 LPM at 8-metre head. It runs on 240V single-phase power, with a full load current of 8.6 amps and a power input of 1980 watts. Maximum noise output is 65 dB(A) at 1 metre.
