SKU: DiamondDI130

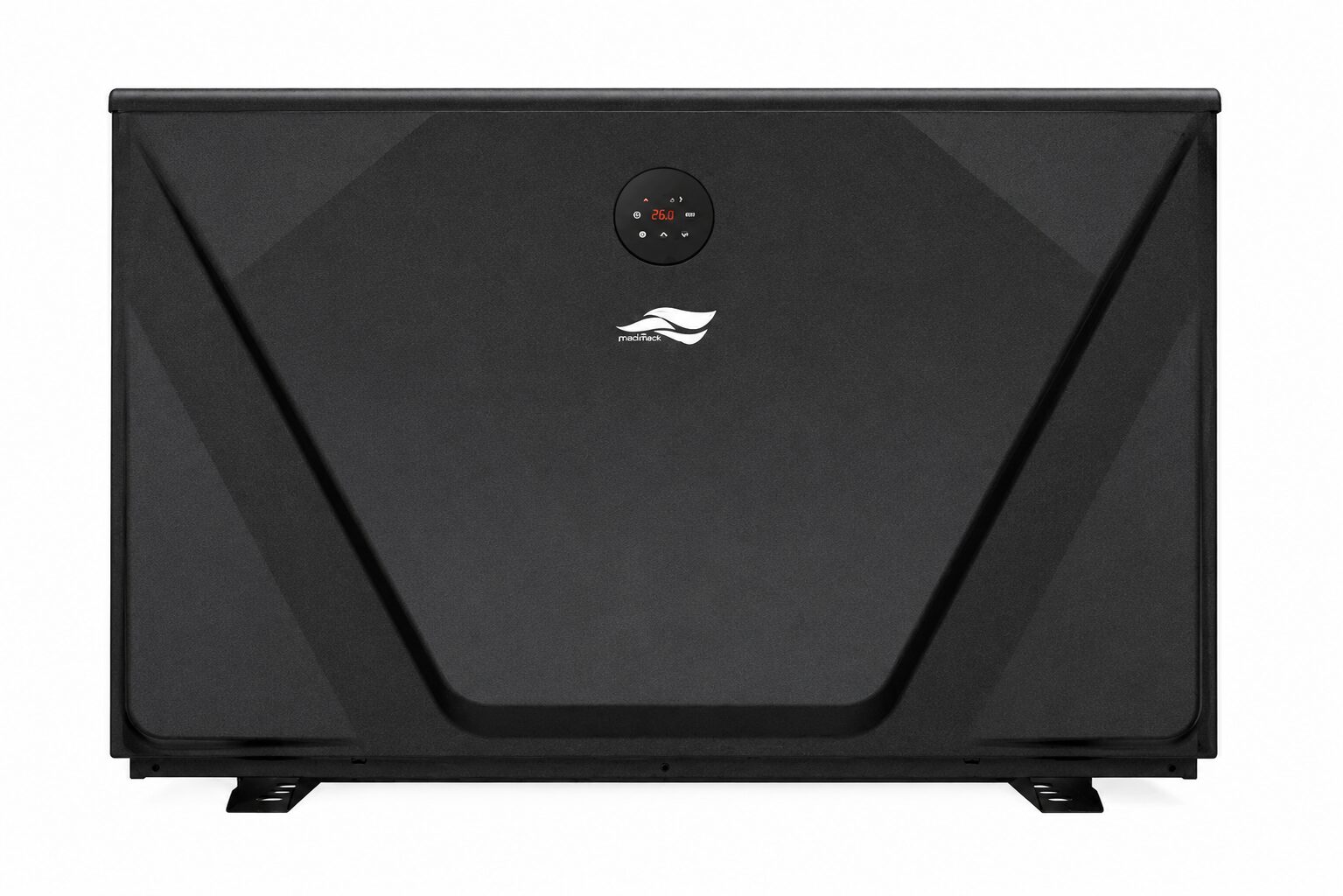

Pure Blue DI130 Diamond Series Pool Heat Pump
Features
-
- STEPLESS DC INVERTER
It adopts a stepless inverter compressor and DC inverter motor. The speed adjustment can be as low as 1 hertz and 1 round. - MODERN DESIGN
Invisible fan to draw air from two sides, and exhaust air from the back to eliminate possible noise. - COP UP TO 15
Diamond heat pump runs at middle and low speed to maintain pool temperature for 95% of the pool season. With just 1kW of power input, it can deliver up to 15kW of heating output. - DREAM SILENCE
Diamond’s sound level is as low as 42 dB(A) at a distance of 1 metre. - SMART WI-FI CONTROL
You can control Qnixx with the InverGo app anytime, anywhere. - ECO-FRIENDLY R32
Uses environmentally friendly R32 refrigerant for improved efficiency and reduced environmental impact.
- STEPLESS DC INVERTER
Contact Us for Expert Guidance
We Accept
The Di130 is suitable for pools between 30 and 60m³, producing 12.6kW of heating at standard operating conditions. It offers a COP range of 14.0 to 6.4, with an excellent average COP of 9.5 at 50% speed for highly efficient year-round heating.
During cooler conditions, it delivers 9.0kW of heating with a COP range of 7.0 to 4.4 and an average COP of 6.3. The unit also provides 5.9kW of cooling capacity.
The Di130 operates on 230V single-phase power, with rated power consumption between 0.32 and 2.10kW and a maximum current of 10.5A. It requires 4 to 6m³/h water flow, uses 40mm plumbing connections, measures 89 × 43 × 66cm, weighs 55kg, and has a sound level of 21.9 to 32 dB(A).
| Heat Capacity | 12.6 kW |
| COP Range | 14~6.4 |
| Power Supply | Single Phase |
